Q. Six identical conducting rods are joined as shown in figure. Points A and D are maintained at 200°C and 20°C respectively. The temperature of junction B will be

In This post you will get answer of Q.
Six identical conducting rods are joined as shown in figure. Points A and D are maintained at 200°C and 20°C respectively. The temperature of junction B will be

Solution:

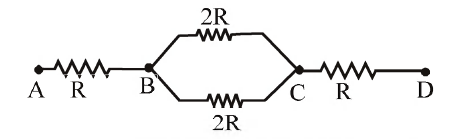

The equivalent electrical circuit of the arrangement is shown in figure.

Temperature difference between the end points A and D = 200 – 20 = 180°C

As the resistances for the three parts are equal, the temperature difference must be distributed equally in the three parts (= 180/ 3 = 60°C)

$ thereforequad$ Temperature of B = 200°C – 60° = 140°C.
